How I Used WSO2 API Gateway & Choreo Analytics to Secure My SaaS License Server

Beginner’s Journey

A practical walkthrough of putting an enterprise API Gateway in front of a Laravel-based licensing system and what I learned along the way.

The Problem I Had to Solve

I built GarageCare, a garage management system designed for automotive workshops in Sri Lanka. It handles everything from customer intake and job cards to invoicing, inventory, and payments. Over time it grew from a simple tool into a full-featured SaaS platform supporting multiple business verticals: general garages, service centres, car washes, detailing centres, and body shops.

And GarageCare operates on a per-installation license model, every workshop that installs the software must activate a license, and the application periodically phones home to validate its entitlements. That “phone home” target is my License Server: a standalone Laravel API that manages license activation, heartbeat validation, subscription status, and payment processing.

For a long time, the License Server sat naked on the internet. Laravel’s built-in rate limiting middleware was the only line of defense between the public internet and my business-critical licensing logic. That worked when I had a handful of early customers. But as the platform matured with 66 models, 42 services, 1,557 tests, insurance claims, multi-branch operations, the stakes changed dramatically.

I needed to answer three questions:

1. How do I protect the License Server from abuse without building throttling, IP filtering, and traffic shaping from scratch?
2. How do I observe and understand real traffic patterns across all my API endpoints?
3. How do I do this without rewriting my existing client integrations ?

The answer turned out to be WSO2 API Manager for the gateway, and Choreo Analytics for the observability layer.

Why an API Gateway? (And Why Not Just Laravel Middleware?)

Before WSO2, my security architecture looked like this:

Laravel’s throttle middleware handled rate limiting. A custom VerifyHmacSignature middleware validated that every request carried a valid cryptographic signature. It worked, but it had fundamental weaknesses.

The Limits of Application-Level Protection

1. Every request still hits PHP. Even a rejected request consumes a PHP-FPM worker, parses the request body, and runs middleware logic. Under a sustained brute-force attack, the application itself becomes the bottleneck.

2. Throttle state is local. Laravel’s throttle middleware uses the application's cache (Redis or file). In a scaled deployment, there's no shared state when an attacker hitting different nodes circumvents per-node limits.

3. No traffic visibility. Laravel logs are great for debugging, but they don’t give you a real-time operational dashboard with total traffic, error rates, latency percentiles, top consumers. You have to build all that yourself.

4. No API lifecycle management. Want to deprecate an endpoint, version your API, or generate developer documentation? With raw Laravel, that’s manual work for every change.

An API Gateway solves all four problems by sitting in front of the application, making decisions at the edge before a single byte reaches PHP.

What WSO2 API Manager Actually Does

WSO2 API Manager is a full API management platform. The edition I used, WSO2 API Manager 4.4.0 ships as a single Docker image and bundles:

With the Gateway in place, the traffic flow changed fundamentally:

The key insight is that the Workshop clients didn’t change at all. Every deployed installation kept using the same URL structure, the same HMAC headers, the same request format. The only thing that changed was the DNS pointing from the raw server to a new API subdomain that routes through the Gateway.

The HMAC Pass-Through Challenge

This was the trickiest part of the integration, and it’s worth explaining because it’s a scenario many SaaS developers will face.

My Custom Authentication Scheme

GarageCare doesn’t use OAuth2 tokens or API keys in the traditional sense. Instead, every API call carries three custom headers:

The signature is computed over the concatenation of the license key and timestamp, using a per-license API secret that only the legitimate workshop installs and the License Server know.

This is a zero-overhead authentication scheme with no token refresh flows, no OAuth dance, no round trips. Every request is independently verifiable. Laravel’s VerifyHmacSignature middleware validates the signature server-side.

The WSO2 Conflict

By default, WSO2 API Manager expects OAuth2 or API Key authentication. It’s designed around its own Key Manager issuing tokens, and applications subscribing to APIs through the Developer Portal.

That’s a great model for public API programmes. It’s completely wrong for my use case. I don’t want WSO2 to authenticate requests, Laravel does that. I want WSO2 to transparently forward the HMAC headers and let Laravel validate them exactly as it always has.

The Solution

The fix was straightforward once I understood WSO2’s security model:

1. Keep OAuth2 selected (WSO2 requires at least one security scheme).
2. Disable security at the resource level — each endpoint’s padlock icon in the Publisher was toggled to “open,” telling the Gateway to pass traffic through without token validation.
3. Configure CORS headers to explicitly allow X-License-Key, X-Timestamp, and X-Signature through the Gateway.

The result: WSO2 applies its throttling policies and logs every request, but it never interferes with the HMAC authentication flow. Defense in depth, the Gateway handles rate limiting and traffic shaping, Laravel handles cryptographic authentication.

Tier-Based Throttling — Protecting the Backend

One of the most valuable features of the Gateway is subscription-tier throttling. My licensing model has three tiers — Basic, Professional, and Enterprise, each with different API rate limits.

Before the Gateway, I had to implement this in Laravel:

// Old approach — throttle in Laravel middleware
Route::middleware(['throttle:30,1'])->post('/licenses/activate', ...);
Route::middleware(['throttle:60,1'])->post('/heartbeat', ...);

This was fragile. Every request still consumed PHP resources before being rejected. And changing limits meant redeploying code.

With WSO2, throttling is declarative and externalized:

When a workshop exceeds its quota, the Gateway returns HTTP 429 Too Many Requests immediately, PHP never sees the request. The Laravel middleware remains as a defense-in-depth backstop, but in normal operation, the Gateway catches all abuse at the edge.

The heartbeat endpoint gets an additional resource-level policy: 20 requests per hour per license key. Since heartbeats are scheduled every 6 hours in the Workshop client, 20/hour is extremely generous for legitimate use, but tight enough to catch any misconfigured or abusive installation.

Deploying WSO2 on a Production VPS

Docker: The Only Sane Approach

WSO2 API Manager is a Java application running on Apache Tomcat. Installing it bare-metal means managing Java versions, environment variables, Tomcat configuration, and startup scripts. For a one-person engineering team, that’s operational overhead I don’t need.

Docker makes it a single service definition — image, ports, volumes, resource limits. Two critical decisions I made:

1. Gateway ports bound to localhost only. The Gateway and Portal ports are never exposed to the public internet. Nginx terminates TLS on port 443 with a proper Let’s Encrypt certificate and proxies internally. The Docker container is invisible to port scanners.

2. Resource limits. WSO2’s JVM is configured with a 2 GB heap, and Docker enforces a 3 GB hard memory cap. On an 8 GB VPS that also runs Laravel and MySQL, this prevents the JVM from starving the other processes during garbage collection spikes.

The OpenAPI-First Workflow

Rather than manually clicking through the Publisher UI to define each endpoint, I wrote an OpenAPI 3.0 specification covering all six API endpoints. Then I imported it into WSO2 Publisher in one step.

This approach has a huge advantage: the spec is version-controlled alongside the application code. When I add a new endpoint to Laravel, I update the YAML file, re-import it, and deploy a new revision. The API definition and the application code evolve together.

Choreo Analytics — Real-Time Visibility

After the Gateway was running, I had throttling and header forwarding working perfectl, but I was flying blind. I could check Nginx access logs for raw request counts, but I had no operational dashboard showing:

• Total traffic over time
• Error rate percentages
• 95th percentile latency
• Top API consumers

This is where Choreo comes in.

What Is Choreo?

Choreo is WSO2’s cloud-native developer platform. It offers a free tier that includes API analytics, you generate an on-premises key, add three lines to your WSO2 configuration, and the Gateway starts securely streaming anonymised metrics to the Choreo cloud.

Setting It Up (Three Lines of TOML)

The entire Choreo integration is three lines in WSO2’s deployment.toml:

[apim.analytics]
enable = true
config_endpoint = "https://analytics-event-auth.choreo.dev/auth/v1"
auth_token = "<your-on-prem-key>"

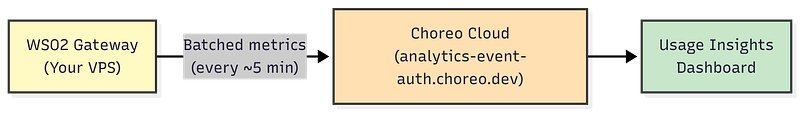

After restarting the container, WSO2 begins batching analytics events and pushing them to the Choreo cloud every few minutes. The first data appeared in the Choreo dashboard within about 5 minutes.

What the Dashboard Shows

The Usage Insights page in Choreo gives me exactly what I needed:

For a licensing system, the latency metric is particularly important. If the heartbeat endpoint starts responding slowly, workshops might flag false “license expired” warnings to their users. Monitoring the 95th percentile lets me spot degradation before it becomes user visible.

Lessons Learned as a WSO2 Beginner

I came into this project with zero WSO2 experience. Here’s what I wish I’d known from day one:

1. WSO2’s Documentation Assumes You’re Using OAuth2

Almost every WSO2 tutorial, blog post, and official example assume you’ll use the built-in Key Manager to issue OAuth2 tokens. If you have your own authentication scheme (like HMAC), you need to dig into the Publisher UI to find the per-resource security toggles. The documentation doesn’t prominently feature this use case.

Tip: In the Publisher → Resources tab, clicking the padlock icon on each endpoint toggles security on/off at the resource level. This is how you tell WSO2 to pass traffic through without token validation.

2. deployment.toml Is Sacred — No Duplicates

WSO2’s configuration parser (TomlParser) will crash the entire server if you accidentally define the same TOML section twice. I learned this the hard way when I pasted an [apim.analytics] block at the bottom of the file without realizing it already existed higher up. The server entered a crash loop, restarting every 60 seconds.

Tip: Before editing deployment.toml, always search for the section name first. Each [section.name] can only appear once in the entire file.

3. “Publish” ≠ “Deploy”

In WSO2 4.4.0, clicking “Publish” in the Publisher makes the API visible in the Developer Portal, but it does not deploy it to the Gateway runtime. You must separately go to Deployments → Deploy New Revision to push the API definition to the Gateway’s Synapse engine.

I spent an embarrassing amount of time debugging 404 errors before realizing the API was “published” but never “deployed.”

4. The Gateway Takes 2–3 Minutes to Cold Start

WSO2 is a JVM application. On a 2-vCPU VPS with a 2 GB heap, the first boot takes about 2–3 minutes. During this time, any request to the Gateway returns a 502 from Nginx. This is normal — don’t panic. Watch the Docker logs for the WSO2 API Manager started in X seconds message.

5. Choreo Analytics Has a Batching Delay

Don’t expect real-time data in the Choreo dashboard. WSO2 batches analytics events and pushes them every few minutes. After the first push, there’s an additional processing delay on the Choreo side. Budget about 5–10 minutes before your first traffic appears on the graphs.

The Security Model — Defense in Depth

The final architecture implements four distinct security layers:

The important principle is that no single layer is responsible for all security. If the Gateway somehow fails open, Laravel’s HMAC middleware still rejects unsigned requests. If Laravel’s middleware has a bug, the Gateway’s rate limits still prevent mass exploitation. Each layer assumes the others might fail.

Was It Worth It?

Absolutely. Here’s my honest assessment:

What I Gained

• Edge-level protection — abusive traffic is rejected before touching PHP
• Operational visibility — Choreo gives me a real-time dashboard I didn’t have before
• API lifecycle management — versioning, deprecation, and documentation in one place
• Externalized configuration — changing rate limits doesn’t require code deployment
• Zero client changes — every deployed workshop installation kept working without updates

What It Cost

• RAM — WSO2’s JVM consumes 2–3 GB, which required upgrading from a 4 GB to an 8 GB VPS
• Complexity — one more moving part (Docker container) to monitor and maintain
• Learning curve — WSO2’s documentation is enterprise-focused; finding beginner-friendly guidance took effort
• Cold start time — the Gateway takes 2–3 minutes to boot, which means planned maintenance has a brief window of downtime

The Verdict

For a SaaS product with a licensing API that must be reliable and secure, the trade-off is strongly positive. The Gateway gives me capabilities that would have taken weeks to build in Laravel and would have been far more fragile.

What’s Next

This was Phase 1 — getting the Gateway and analytics running. Future phases include:

• Phase 2: Deeper analytics integration — custom dashboards, alerting on anomalous traffic patterns
• Phase 3: API versioning and graceful deprecation workflows as the License Server API evolves
• Partner API programme: Using WSO2’s Developer Portal to offer third-party integrations with proper self-service API key management

Resources

If you’re considering WSO2 API Manager for your own project, here are the resources I found most useful:

I’m a solo developer building GarageCare for the Sri Lankan automotive industry. If you’re working on a similar SaaS licensing architecture or have questions about WSO2 integration, feel free to connect with me on LinkedIn or drop a comment below.
